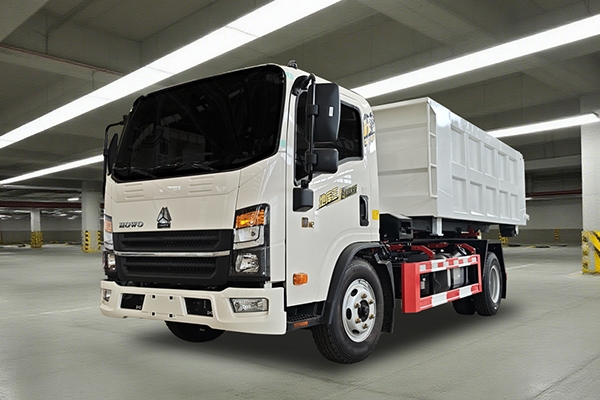

Hook-Arm Garbage Truck
Your efficient helper for underground garage waste transfer.
Flexible in movement
Efficient in operation
Reliable in quality
Underground Garage Special
Vehicle height: 2.15 m for easy access. Fast bin replacement.
Multi-functional: transfer, self-dumping, etc.
Efficient Loading & Unloading
8-ton hook arm completes loading/unloading in 45 seconds.
Dual control mode: manual + wireless remote.
Rear door can be laid flat as a ramp for labor-saving and high efficiency.
Reliable Chassis
Weichai 180 HP engine, 8-speed transmission, 8-ton rear axle.
Lightweight design with high load capacity, comfortable and effortless driving.
Robust Container
Thickened container body, strong impact resistance, long service life.
| MainProductParameters | ||||
| 1 | MainVehicleParameters | Model | ZZ5047ZXXH3315F145 | |
| 2 | ChassisModel | ZZ1047H3315F145Z | ||
| 3 | OverallDimensions(L×W×H) | mm | 5570×2050×2120 | |
| 4 | GrossWeight | Kg | 4495 | |
| 5 | CurbWeight | Kg | 2565 | |
| 6 | RatedLoadCapacity | Kg | 18,001,735 | |
| 7 | FrontOverhang/RearOverhang | mm | 1160/1130 | |
| 8 | Wheelbase | mm | 3280 | |
| 9 | Hook-armUpperBodyParameters | OverallDimensions(L×W×H) | mm | 3650×1895×1360 |
| 10 | Hook-armWeight | kg | 1250 | |
| 11 | Max.PressureofHydraulicSystem | MPa | 22 | |
| 12 | OperationMode | Hydraulic/Manual/RemoteControl | ||
| 13 | SuitableWheelbase | mm | 3280/3300/3360 | |
| 14 | HookBaseHeight | mm | 925 | |
| 15 | ContainerHookingTime | s | ≤45 | |
| 16 | ContainerUnhookingTime | s | ≤45 | |
| 17 | Max.DumpingAngle | ° | 50 | |
| 18 | Max.LoadCapacityofHookArm | kg | 14000 | |
| 19 | CycleTimeofLifting&Dumping | s | ≤55 | |
| 20 | ContainerParameters | ContainerSpec.1(L×W×H) | mm | 3800×2000×1000,Volume7.6m³ |
| 21 | ContainerSpec.2(L×W×H) | mm | 3700×2000×900,Volume6.66m³ | |
| 22 | ContainerSpec.3(L×W×H) | mm | 3600×2000×800,Volume5.76m³ | |
| 23 | WeightofContainer(Spec.1) | kg | 1275 | |
| 24 | PlateThickness | mm | Bottom5,Side3 | |
| 25 | WidthofSub-frame | mm | 1060 | |
