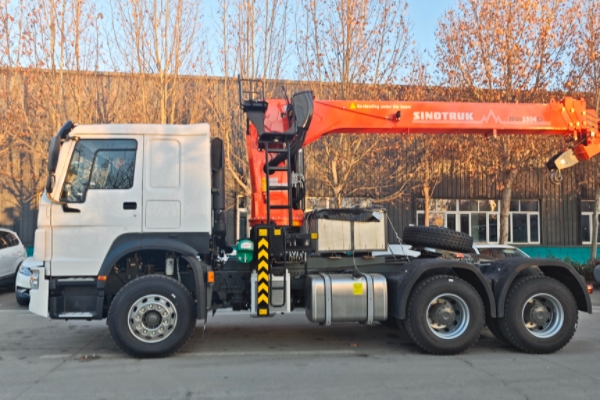

Crane Parameters

1.The four-section main boom fully extends to 16m with a maximum lifting height of 17m. It adopts a superimposed hexagonal boom cross-section, leading the industry in boom length and rigidity.

2.High-strength steel plate is adopted, with the basic boom moment reaching 276kN.m, boasting industry-leading lifting capacity.

3.The boom adopts a single oil cylinder + telescopic rope row design, which increases the telescopic speed of the boom while ensuring a certain load telescopic capacity, further improving the working efficiency of the whole vehicle.

4.It has the largest lateral outrigger span in the industry, up to 6m, making the whole vehicle more stable.

5.Dual-pump oil supply system, with independent oil supply for outriggers and slewing. The new-structure upper vehicle multi-way valve features better controllability and inching performance, enabling perfect combined movements and more efficient operation.

6.Upgraded configuration with double-fold hoist to reduce rope disorder accidents; the hoist is equipped with dual-pump confluence for higher operation efficiency, with a single-rope speed of up to 93m/min.

7.Solar energy maintenance-free wireless height limiter is adopted, featuring maintenance-free operation and more stable performance. On the basis of alarm, it can realize the function of cutting off overload.

8.Upper operation is standard, four-position operation is optional, as well as upper vehicle sunshade, seat heating and electric fan functions; automatic hook retraction is standard.

9.Oil cooler is optional to extend continuous operation time.
